Factory Second John Deere Lawn Mower Lowback Seat Replaces PN GY12209
John Deere Factory Second Seat (has minor cosmetic defect from factory)
Should fit most L100, L105, L107, L108, L110, L111, L118, L120, L130, L135, L145 LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA145, LA155 D120, 130, 140, G110, X110 and many more…please check your measurements below.
REPLACES JD PART NUMBER GY12209 – Made By Milsco

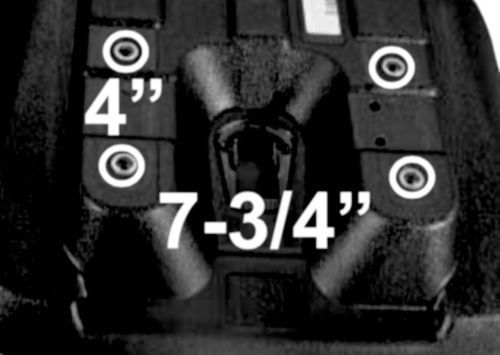

- 4 bolt mounting:
- 4″ top to bottom, 7-3/4″ left to right
- Has four 5/16″ threaded bolt holes
- DOES NOT come with any hardware
- DOES NOT have John Deere sticker on back of seat
Seat Dimension Measurements: W:17-3/4″ L:18″ H:11-1/2″
Has safety switch hole
